Polytetrafluoroethylene (PTFE)

A fluorocarbon solid made from carbon and fluorine, PTFE is hydrophobic, and has one of the lowest coefficients of friction of any solid. Commonly referred to by its brand name, Teflon®, PTFE is most commercially known for its role as an effective non-stick cookware coating. Its non-reactive properties make it ideal for use in environments where aggressive chemicals are present. A thermoplastic with a high melting point (as compared to other plastics and elastomers), PTFE can withstand tough, high-temperature conditions.

Key Properties of PTFE

temperature symbol
High
Temperature
Range
media symbol
Excellent
Media
Compatibility
friction symbol
Low
Coefficient
of Friction
tensile strength symbol
Moderate
Tensile
Strength
hardness symbol
Moderate
Hardness

Bal Seal® PTFE Material Performance

Our PTFE sealing materials for rotary, reciprocating, and static applications are formulated to provide optimal performance and service life in your designs. Our offering ranges from virgin PTFE to precision blends that leverage the additive properties of polyimide, graphite, moly disulfide, carbon fiber, and other fillers to meet specific temperature, pressure, speed and wear requirements. Many of our PTFE sealing materials are USP Class VI compliant, FDA compatible, or compliant with FDA standards.

Temperature Resistance
(° fahrenheit)

temperature graph

Media Compatibility
(rating)

media graph

Friction
(µ at ambient temperature)

friction graph

Tensile Strength
(psi at break)

tensile strength graph

Hardness
(Shore D)

hardness graph

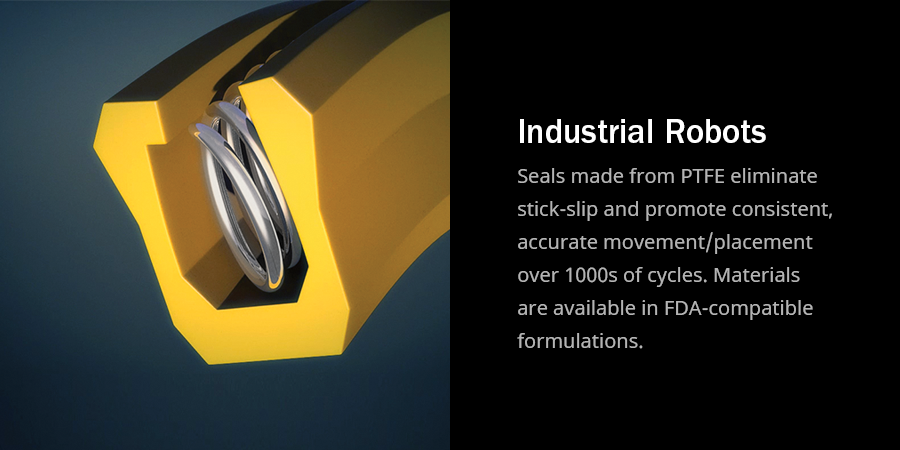

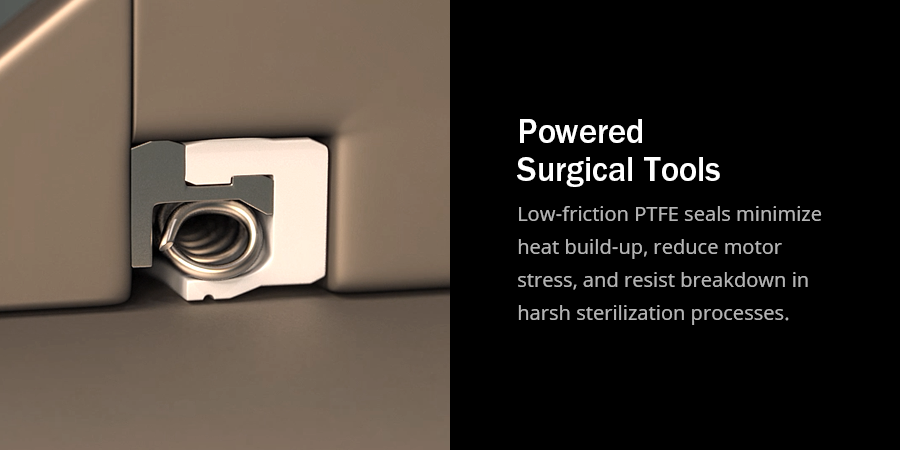

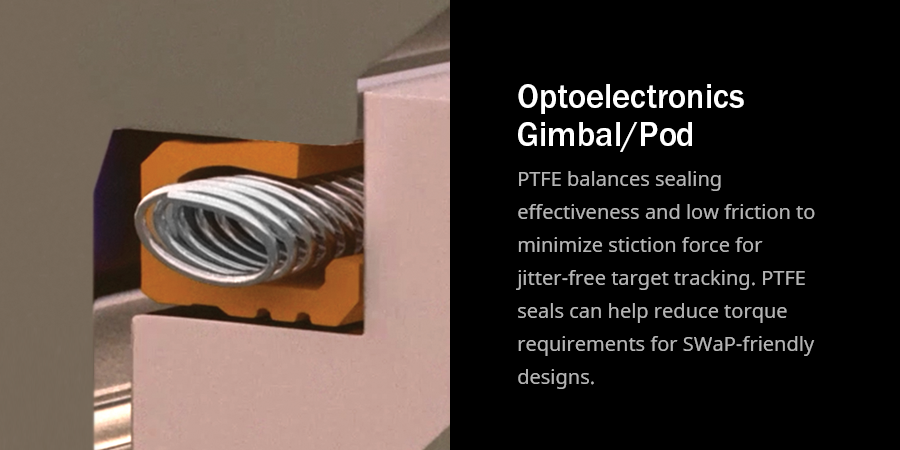

PTFE Seal Applications

Technical Resources

Virgin Polytetrafluoroethylene
(PTFE)

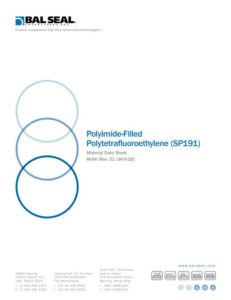

Polyimide-filled PTFE

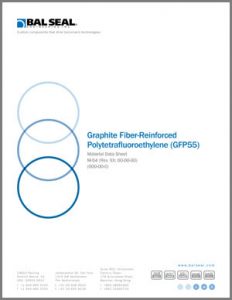

Graphite Fiber-Reinforced
Polytetrafluoroethylene

(GFP)

Graphite fiber-reinforced PTFE

Polymer-Filled
Polytetrafluoroethylene

(SP-45)

Polyimide-filled PTFE
