LKS High PV Seals
For over 25 years, Bal Seal Engineering, Inc. has been providing oil and gas process equipment OEMs and designers with intelligent solutions to the toughest sealing challenges. Our LKS™ Seal continues this tradition by delivering reliable, consistent performance and offering unprecedented levels of service life and predictability. The innovative, multi-component LKS provides exceptional protection against leakage in harsh chemicals, temperatures, pressures and speeds, and it replaces costly sealing assemblies.
ULTIMATE PERFORMANCE. MINIMUM DOWNTIME.

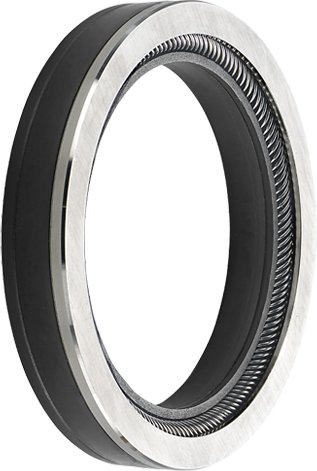

The LKS is a multi-component seal consisting of a Canted-coil™ spring-energized, graphite-reinforced PTFE sealing ring coupled with a high-temperature engineered thermoplastic anti-extrusion element and a metal locking ring. Under high pressure and velocity, it guards against extrusion of the seal jacket material by supporting it in hardware with little or no “E” clearance. The seal’s design forces the wear pattern of the jacket material to take place at the lip contact area, not the hinge point.
Features
Benefits
- All-in-one configuration
- Eliminates costly assemblies/assembly error, simplifies maintenance and replacement, provides compatibility with conventional gland configurations.
- Built-in thermoplastic anti-extrusion element
- Minimizes seal jacket extrusion, provides longer sealing life, forces wear to occur at lip contact area, not hinge point, extends seal performance range at low and high temperatures (-94ºF to +550ºF).
- Graphite-reinforced PTFE sealing ring
- Retains ability to seal in high-temperature, high pressure service conditions at moderate speeds, provides high level of extrusion resistance, long-wearing properties and built-in lubricity.
- Hastelloy® Canted-coil™ spring
- Exerts uniform sealing force against the shaft, lowers frictional contact at the lip area (reducing heat build-up and extending seal life), provides excellent corrosion resistance/chemical compatibility.
- Metal locking ring (interference-fit in seal housing)
- Prevents OD of seal from dynamic movement, minimizes friction/heat and prolongs seal service life.
The Bottom Line.
The multi-component LKS Seal combines innovative design and
material science with proven Canted-coil™ spring technology
to give you 150% more service life and an increased level
of protection against warranty claims.
